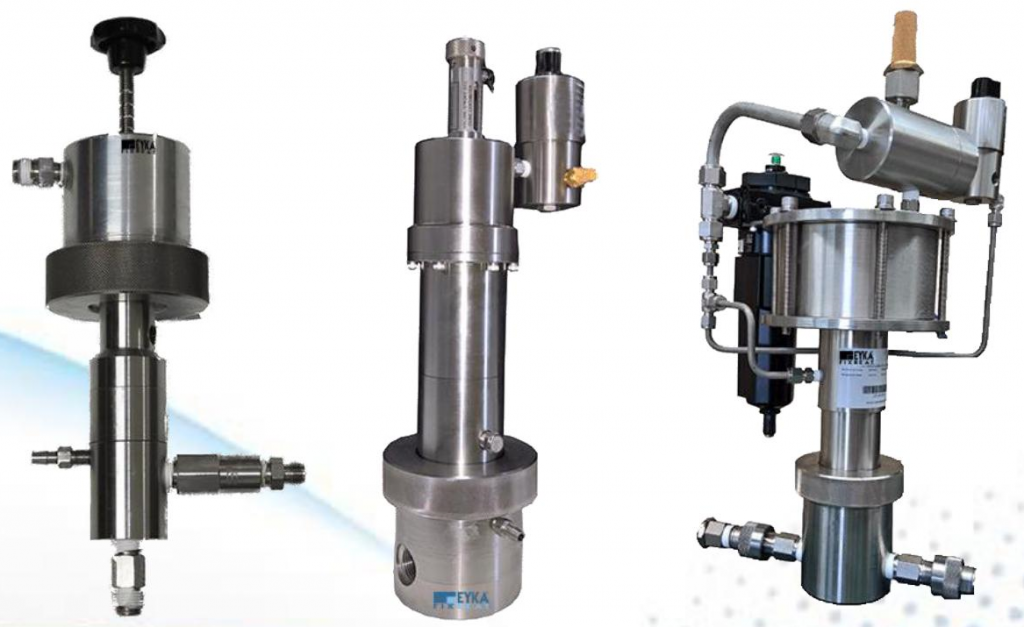

FIXBEAT Chemical INJECTION PUMP

PNEUMATIC/GAS DRIVEN
Inherently suitable for hazardous areas and with 316SS available for offshore applications the FixBeat Pneumatic/Gas range of pumps delivers safe, efficient and effective chemical injection you can rely on.

Like all FixBeat pumps, our Pneumatic/Gas range delivers:

• Accurate Control
• High Chemical Containment & Compatibility
• Reliability & Low Maintenance
• A Quality Design
• Options for Offshore & other Hazardous Area Certifications

Plus:
Low Drive Gas Venting – 50% reduction in venting of drive gases into the atmosphere when compared with competitors’ double acting drives.

Chemical Injection Pumps

50% less drive gas venting when compared to the competition’s double-acting drives.

Max. Pressure: 6,000 Psig/ 413 Bar
Max. Flow: 280 GPD/ 1059 LPD

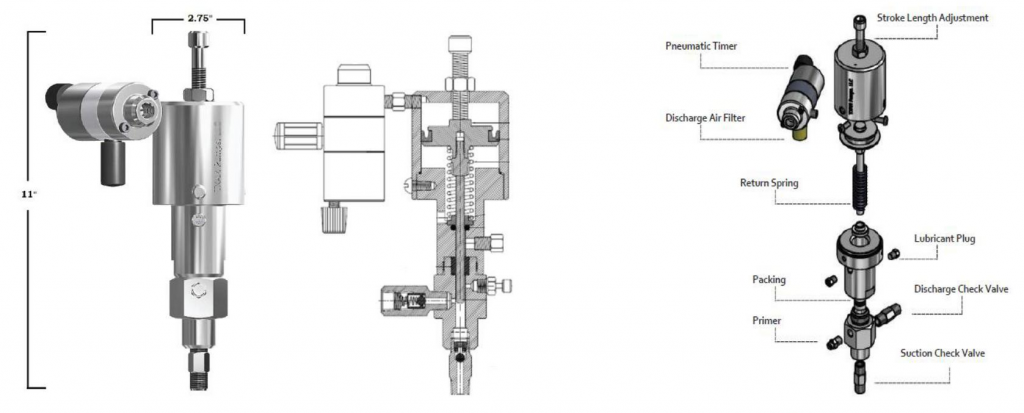

Plunger Sizes: 1/4“; 3/8“; 1/2“; 1″
Spring Return and Spring-Free Models available
